New

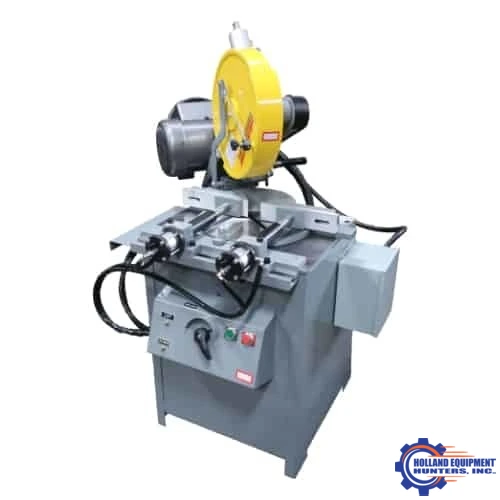

Kalamazoo Ind. 14" High Speed Non-Ferrous Mitre Saw HSM14
Saws, Non-Ferrous| $8,650.00 USD |
HSM14 14 inch high speed non-ferrous mitre saw is designed to material such as brass, aluminum and plastic with the correct high speed blade quick and efficient with right high speed blade. The HSM14 14 inch high speed semi-auto non-ferrous mitre saw is designed to be used in the following industries: Energy, Oil/Natural Gas, Petro/Chemical, Knife Manufacturing, Automotive, Metal Foundries, as well as many other Manufacturing and Fabrication environments.
| Type | 0 |
| Enclosed | 0 |
| RPM | 4400 rpm |
| Dimensions | L 44_ x W 40_ x H 65_. |
| Weight | 750 lbs |
5HP, 3ph, 3450 rpm motor.
4400 spindle speed.
1″ spindle arbor.
Magnetic controls with 24V low voltage protection at on/off push buttons.
Power down feed. Air over oil 0-12 FPM. Semi-automatic. 40 – 50 psi required.
Double v-belt drive.
All steel construction!
Double air vises that open up 6″ with movement Left/right and front/back.
OSHA safety blade guard (Clam Shell Guard).
Mitres left and right to 45deg.
Capacities: 4-1/2″ pipe and square.
Shipping dimensions: L 44″ x W 40″ x H 65″.
Shipping weight: 750 lbs.
3PH amp draws: 230V 12 amps and 440V 6 amps.
1PH amp draw: 19.5 amps.
